DESCRIPTION

Basic Info.

Model NO.	Anchor Chain
HS Code	73158100
Production Capacity	5000t Per Year

Product Description

China largest stud link anchor chain factory, manufacturer,supplier,stockist,for sales .abs,lr,bv,dnv,ccs,kr,nk.all IACS,flush butt welded stud link anchor chain,super long warranty
Product Description

1. Stud Link Anchor Chain Cable Introduction:Stud Link Anchor Chain is widely used on Floating Equipment, Ships, Oil Rigs and Mooring Buoys.Aohai supply wide range of sizes and grades:Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mmCan be supplied with LR, ABS, DNV-GL, NV, NK, KR, TINA, CCS, RS certificateOur chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.

Flash Butt Welding Anchor Chain Cables.

Type	Studlink Chain,Studless Chain
Accessories	Kenter Shackle,End Shackle,Swivel Group,Type A&B Swivel Anchor,Buoy Shackle,Pear Shackle,Triangle Plate,Forlock Shackle
Size	From 22mm to 162mm
Standard	GB/T 549-2017,
Certification	ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS...
Material	CM490,CM690,Special Quality Steel
Surface	Black Painted or Galvanised

Our Company:
China Shipping Anchor Chain(Jiangsu) Co., Ltd is a manufacturer approved by LR, ABS, BV, NK, KR, DNV-GL, CCS, RINA, RMRS......Our main workshop is in Jiangsu, with sales office Qingdao and oversea stock warehouse in Singapore.Our factory is also ISO9001, ISO14001 approval and API approval.Our main products:Anchor chain and accessories (Stud Link Anchor Chain, Studless Anchor Chain, all types of shackles and connectors)Mooring chain and accessories (Stud Link Mooring Chain, Studless Mooring Chain, Grade ORQ, R3, R3S, R4 and R5)Deck outfitting (Chain Stopper, Chock, Bollard and Fairlead)Marine anchors (Oridinary Anchor such as Hall, Spek and Stockless Anchor, High Holding Power Anchor such as AC-14, Danforth and Pool Achor)Offshore and agricultural anchors (Flipper Delta, Stevpris MK5, MK6 and Stevshark)Offshore mooring buoy (Steel Structured, Foam Filled and Navigation Buoys)Container lashing products (Container corner, Socket, Foundation, Twistlock, D ring, Lashing rod and Lashing chain)Fenders (Yokohama Type Pneumatic Fender, Solid Rubber Fender for Quay)Products with high quality and service of professionality is what we pursue.Please contact us if you have any queries, we will do our best to meet your requirements.How to contact us:

1	You can click "contact now" on the top this webpage and email us.
2	You can call and talk to our sales manager.
3	You can see our email address on the bottom of this webpage.

Due to limited space here, some photo is vague, you can contact us for clearer ones.
2. Product Dimensions:

3. Technical Data
Proof Load and Breaking Load of Stud Link Anchor Chain:

Nominal Diameter (mm)	Proof Test Load (kN)		Breaking Test Load (kN)
	Grade 2	Grade 3	Grade 2	Grade 3
17.5	127	179	179	256
19	150	211	211	301
20.5	175	244	244	349
22	200	280	280	401
24	237	332	332	476
26	278	389	389	556
28	321	449	449	642
30	368	514	514	735
32	417	583	583	833
34	468	655	655	937
36	523	732	732	1050
38	581	812	812	1160
40	640	896	896	1280
42	703	981	981	1400
44	769	1080	1080	1540
46	837	1170	1170	1680
48	908	1270	1270	1810
50	981	1370	1370	1960
52	1060	1480	1480	2110
54	1140	1590	1590	2270
56	1220	1710	1710	2430
58	1290	1810	1810	2600
60	1380	1940	1940	2770
62	1470	2060	2060	2940
64	1560	2190	2190	3130
66	1660	2310	2312	3300
68	1750	2450	2450	3500
70	1840	2580	2580	3690
73	1990	2790	2790	3990
76	2150	3010	3010	4300
78	2260	3160	3160	4500
81	2410	3380	3380	4820
84	2580	3610	3610	5160
87	2750	3850	3850	5500
90	2920	4090	4090	5840
92	3040	4260	4260	6080
95	3230	4510	4510	6440
97	3340	4680	4680	6690
100	3530	4940	4940	7060
102	3660	5120	5120	7320
105	3850	5390	5390	7700
107	3980	5570	5570	7960
111	4250	5940	5940	8480
114	4440	6230	6230	8890
117	4650	6510	6510	9300
120	4850	6810	6810	9720
122	5000	7000	7000	9990
124	5140	7200	7200	10280
127	5350	7490	7490	10710

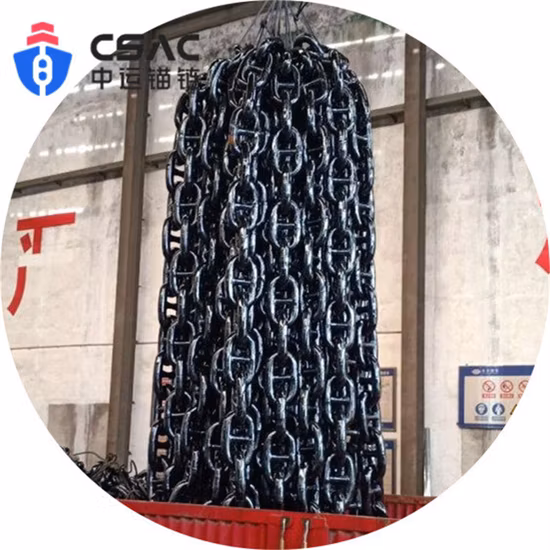

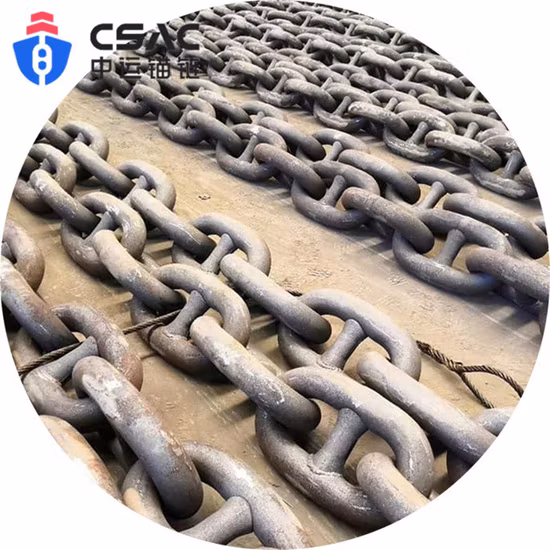

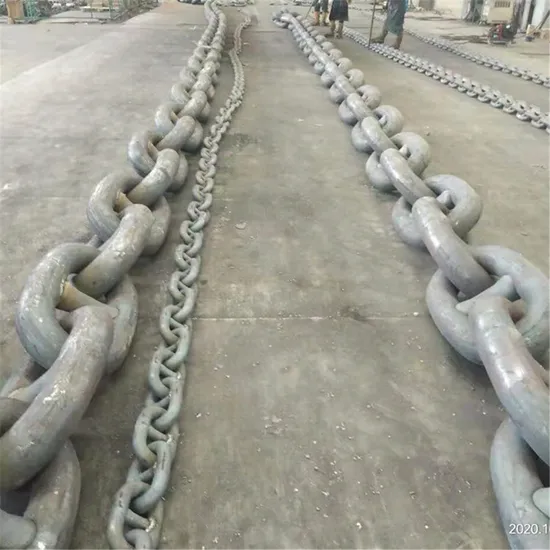

4. Product Photos:China largest stud link anchor chain factory, manufacturer,supplier,stockist,for sales .abs,lr,bv,dnv,ccs,kr,nk.all IACS,flush butt welded stud link anchor chain,super long warranty5. Production And Inspection Procedure:

6. Our Advantage:
Manufacturing Advantage:
1.We have more than 20 years experience in anchor chain production.
2.We keep some in stock can delivery in 1~5 days to meet urgent requirement.
3.Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.
4.Advantage manufacturing facilities:Advanced program-controlled chain production line; Automatic heat treatment machine; Automatic shot blasting machine.5.Quality Control:Manufacturing process quality control from raw material to final product.Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.Load test machine up to 4000Ton.
Thirty Party Certificate:Lloyd's Rigister of Shipping (LR)American Bureau of Shipping (ABS)Det Norske Veritas (DNV)Germanischer Lloyd (GL)Bureau Veritas (BV)Korean Register of Shipping (KR)Nippon Kaiji Kyokai (NK)Registro Ltaliano Navale Group (RINA)China Classification Society (CCS)Russian Maritime Register of Shipping (RMRS)Indian Register of Shipping (IRS)Croatian Register of Shipping (CSR)
Due to limited space here, some photo is vague, you can contact us for clearer ones.

8. Exhibition:
