DESCRIPTION

Basic Info.

Model NO.	Double loop chain
HS Code	73269010
Production Capacity	500ton/Monthly

Product Description

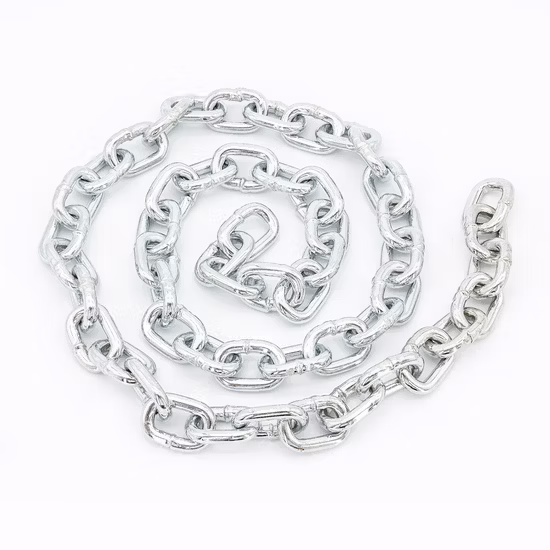

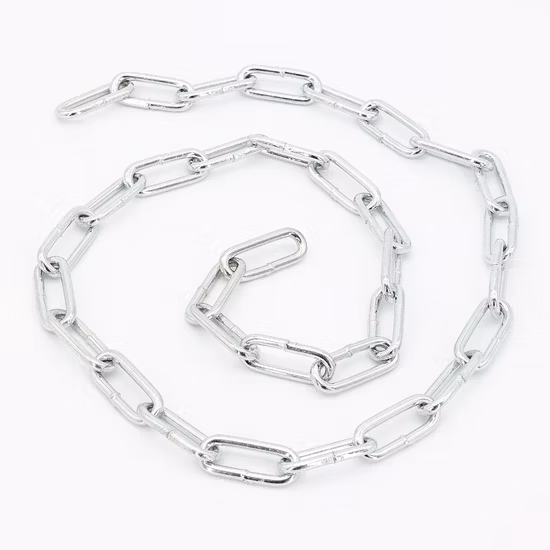

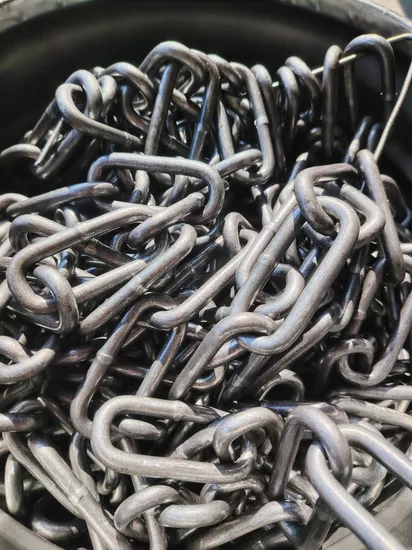

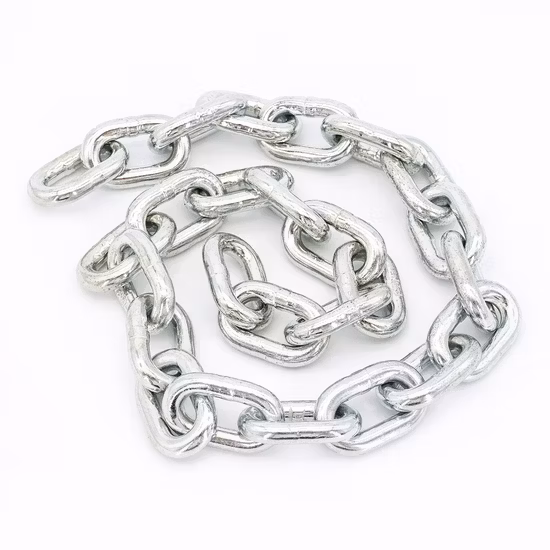

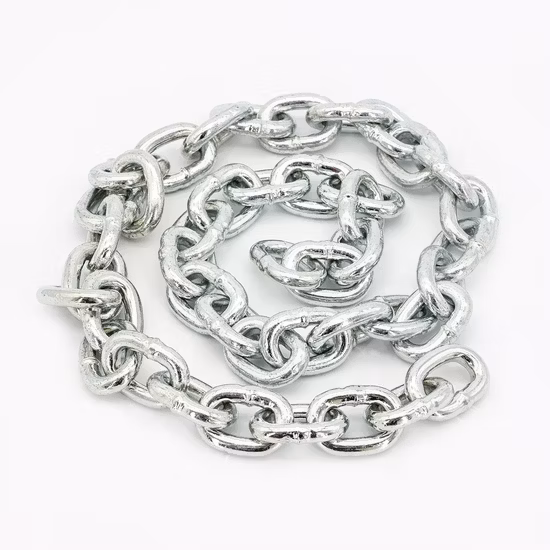

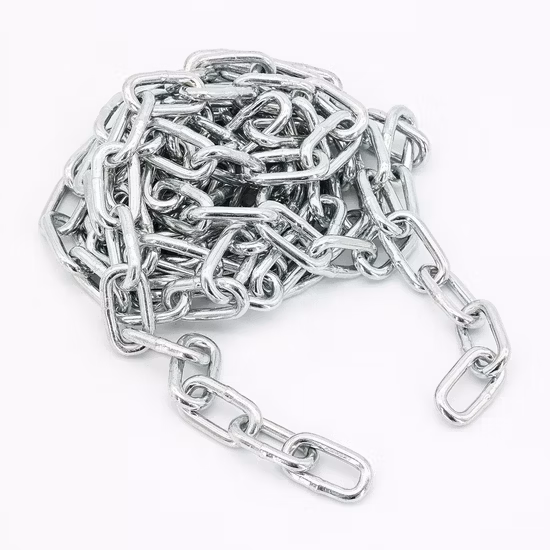

Galvanized Weldless Double Loop Link Chain

ITEM NO.	Diameter	Inside Length	Outside Length	Weight Per 100FT
	(D)MM	(T)MM	(B)MM	KG
5	1.6	23.40	7.0	1.8
4	1.8	24.40	8.0	2.2
4L	1.8	30.50	8.0	1.96
3	2.0	28.00	9.0	3.0
3Z	2.0	36.30	9.0	2.6
3L	2.0	38.00	10.5	2.6
2	2.3	34.00	10.0	3.5
1	2.7	39.50	12.0	4.5
1Z	2.7	49.00	13.5	4.2
1L	2.7	52.00	12.0	4.2
1/0	3.0	45.50	14.0	5.7
1/0L	3.0	56.00	13.0	5.2
2/0	3.4	46.50	15.5	7.5
2/0Z	3.4	53.00	15.5	7.0
2/0L	3.4	57.00	15.5	7.0
3/0	3.8	55.50	17.0	9.4
4/0	4.1	56.00	19.0	11.0
6/0	4.9	74.00	21.0	15.7

Product Specification

Material	Carbon steel, Alloy steel, Steel
Size	1.6mm-4.9mm
Surface	Galvanized
Packing	Wooden Case or Carton or Drum and Pallet and other packing ways as customer .
Origin	Shandong,China

To meet requirment of various markets,the following mould illustrates you other stainlesssteel chain in terms of different standard,material,process,etc.Meanwhile,more items are not limited to these below.
Welded Alloy Steel DIN5685 Short/ Long Link Chain

Lisheng always lead the new development of technologies, new products and value-added services.Over the years,stainless steel chains have been created, applied,and enable real growth forcustomers into new market places.
